The Microsoft Surface Thunderbolt 4 Dock (T8H‑00006) is a high-performance, single-cable docking solution that significantly expands the connectivity of laptops and other USB‑C/Thunderbolt 4-equipped devices. It simplifies workspace setup by combining power delivery, display output, networking, and peripheral connections into one integrated solution.

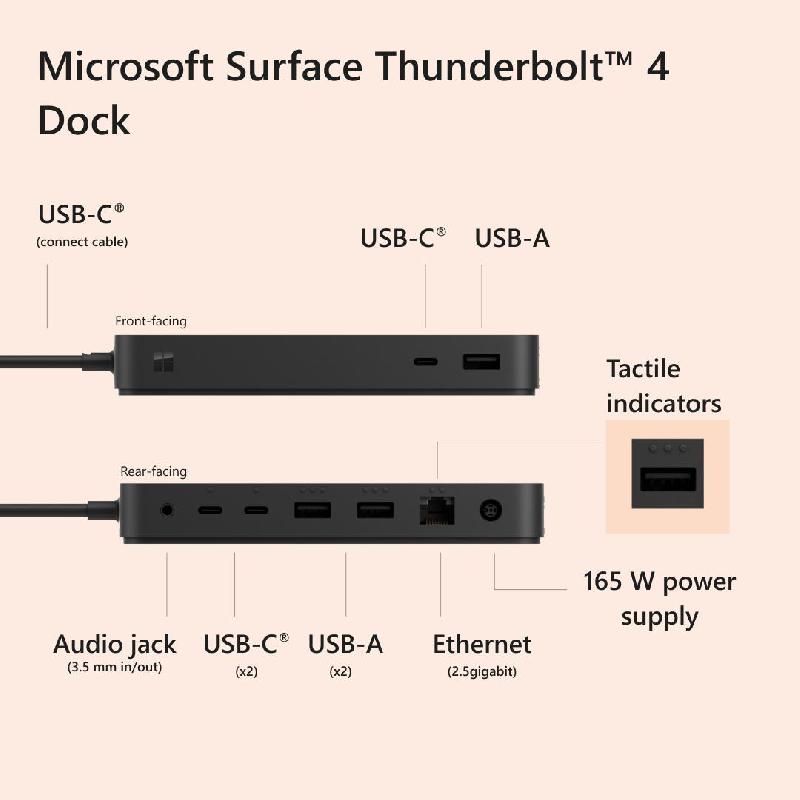

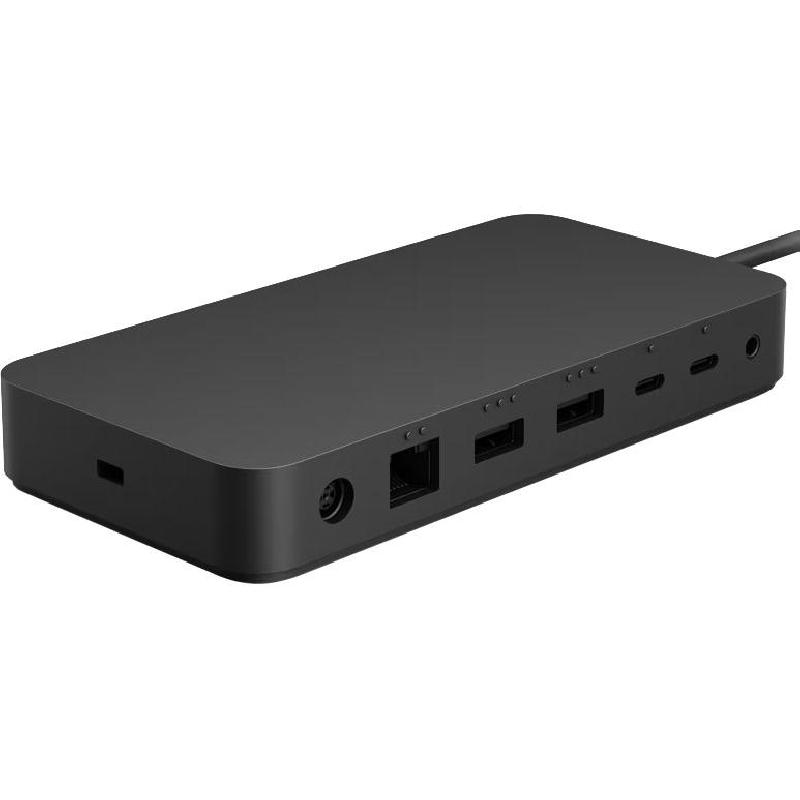

🔌 Ports & Connectivity
-
Thunderbolt 4 / USB‑C Ports:
• 3× Thunderbolt 4 (USB‑C) ports – each supports high-speed data transfer (up to 40 Gb/s) and video output. Two rear-facing and one front-facing for flexible connections. -
USB‑A Ports:
• 3× USB‑A 3.1 Gen 2 ports for external drives, keyboards, mice, and other peripherals, with transfer speeds up to 10 Gb/s. -
Ethernet:
• 1× 2.5 Gbps RJ45 Ethernet port for fast, reliable wired networking. -
Audio:
• 3.5 mm headphone jack for audio output.
🖥 Display Support
-
Dual 4K Displays: Connect up to two external monitors at up to 4K resolution and 60 Hz (when used with a compatible Thunderbolt 4 host device).
⚡ Power Delivery
-

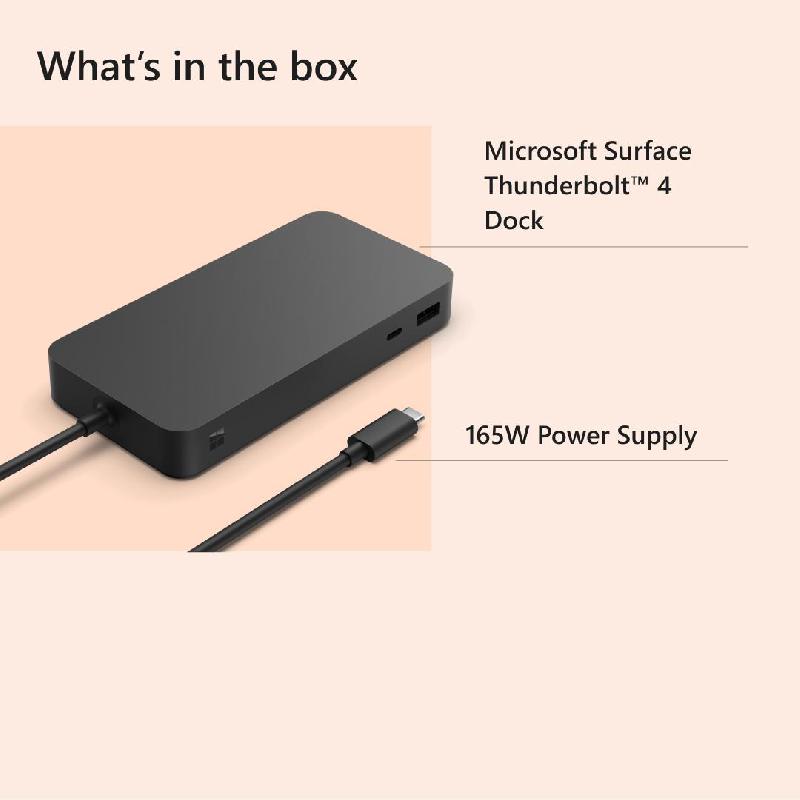

Includes a 165 W power adapter that provides up to 96 W of power pass-through to charge your laptop while powering connected accessories, reducing cable clutter.
🧠 Design & Build
-

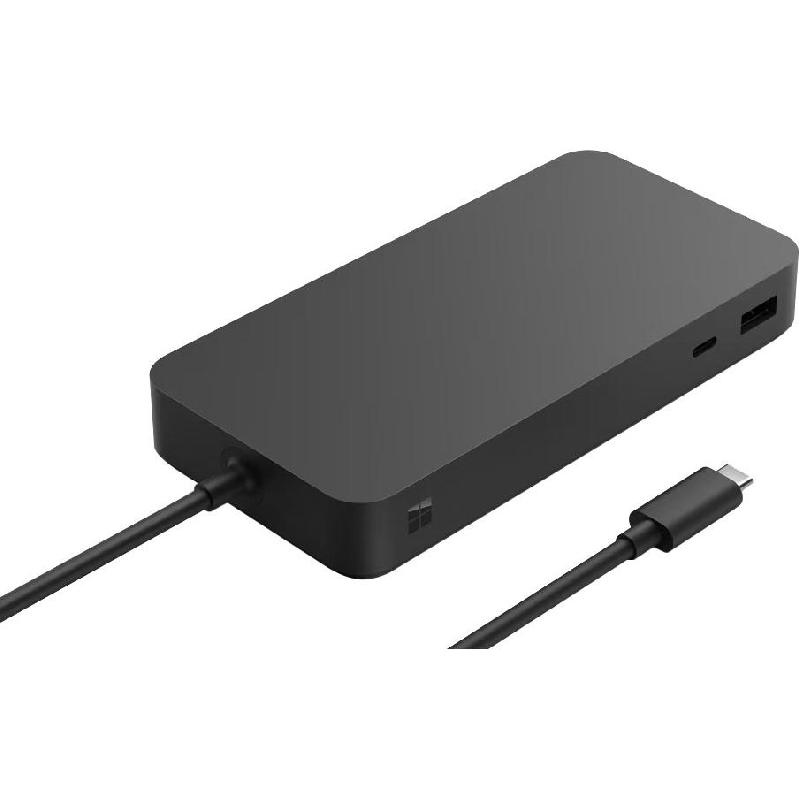

Integrated Thunderbolt 4 Cable: Comes with an 80 cm cable with an LED charging indicator.
-
Accessibility Features: Raised tactile indicators make it easier to find ports without looking.
-
Security: Kensington lock slot support for physical security.
-
Compact Size & Lightweight: Measures roughly 150 × 75 × 21 mm and weighs about 410 g for a clean desktop setup.
