2. Asus
ASUS B650E MAX GAMING WIFI – AMD ATX Motherboard (DDR5, PCIe 5.0, Wi-Fi 6E, 3x M.2, Aura Sync)
Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Unmatched customization: The three addressable second generation covers are all configurable with Aura Sync RGB lighting, to give your motherboard a touch of your own AM5 Socket: Designed for AMD Ryzen 9000, 8000 and 7000 Series Processors Full cooling: VRM and M.2 heatsink, PCH heatsink, hybrid fan cover and Xpert 2+ fan; 6-layer PCB, alloy inductances and durable capacitors for stable power delivery High-performance network: Wi-Fi 6E (802.11ax) and Realtek 2.5Gb Etherner

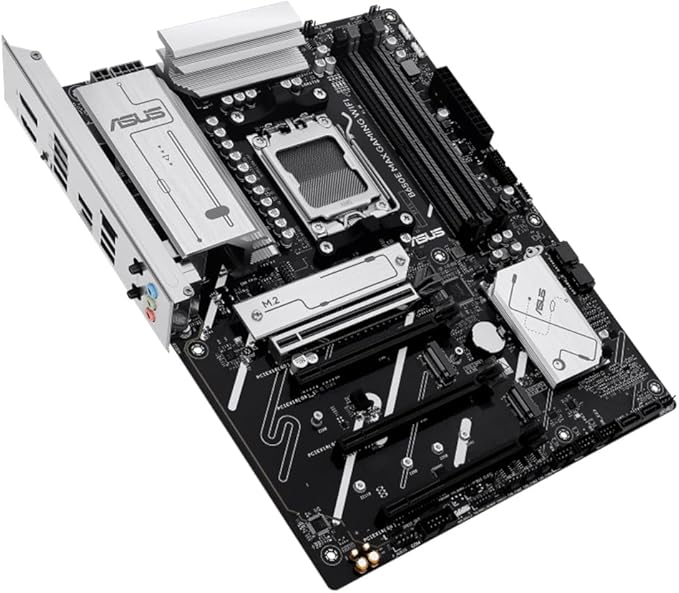

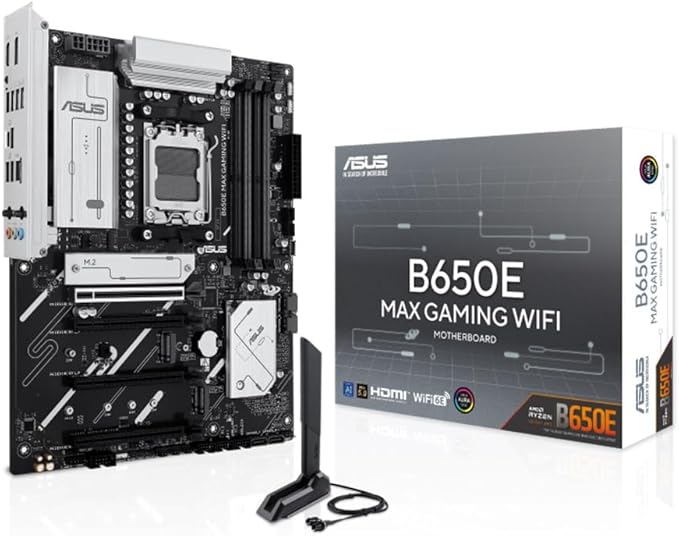

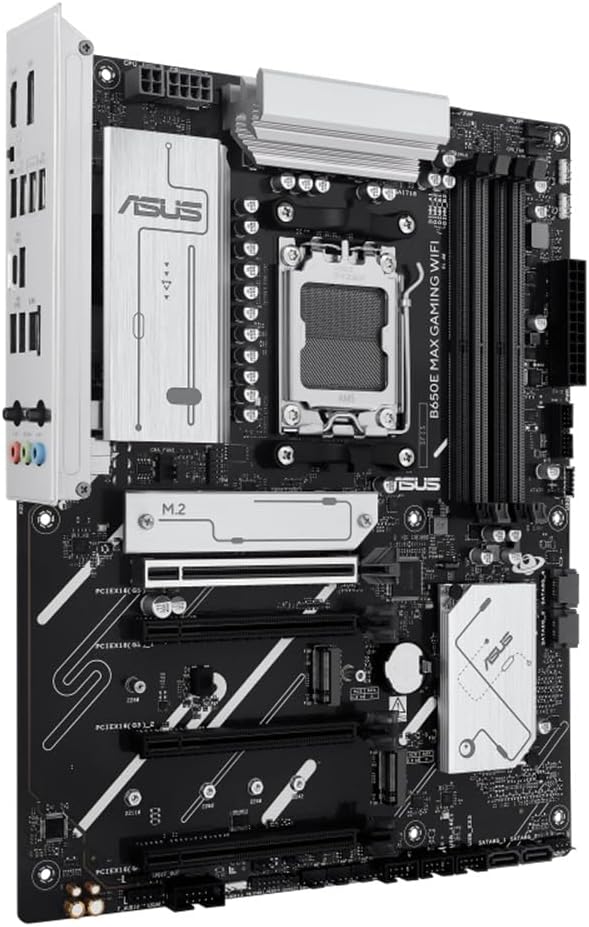

The ASUS B650E MAX GAMING WIFI is an ATX motherboard based on the AMD B650E chipset, designed for AMD Ryzen™ 7000/8000/9000 Series CPUs with the AM5 socket. It combines robust power delivery, high-speed connectivity, and advanced cooling for gaming, content creation, and high-performance PC builds. 90MB1LD0-M0EAY0

🔌 Power Delivery & Performance

  • 8+2+1 Phase Power Design with discrete MOSFETs for stable CPU and memory power delivery.

  • 6-layer PCB, durable chokes, and high-quality capacitors for voltage stability under load.

  • DDR5 Memory Support via 4 DIMM slots, up to 256 GB, with dual-channel configuration.

  • AMD EXPO™ and ASUS AEMP support for easy memory tuning and overclocking.

🧱 Expansion & Storage

Slots

  • 1× PCIe 5.0 x16 slot for next-gen GPUs.

  • Additional PCIe slots (PCIe 4.0 ×16 and PCIe 3.0 ×16/x1) for expansion cards.

Storage

  • 3× M.2 slots, one supports PCIe 5.0 x4 NVMe SSDs.

  • 4× SATA 6 Gb/s ports for HDDs and SSDs.

🌐 Networking & Connectivity

  • Wi-Fi 6E (802.11ax) for fast wireless performance.

  • Realtek 2.5 Gb Ethernet for wired networking.

  • Bluetooth v5.3 support (integrated wireless module).

🔌 USB & I/O

  • USB 10 Gbps Type-C and multiple USB Type-A ports.

  • Additional USB 5 Gbps and USB 2.0 ports.

  • DisplayPort and HDMI outputs (for CPUs with integrated graphics).

  • BIOS FlashBack™ button and Q-LED indicators for easier setup and troubleshooting.

❄️ Cooling & Build Features

  • VRM heatsinks, M.2 heatsinks, and PCH heatsink for effective thermal management.

  • Hybrid fan headers and Fan Xpert 2+ support for flexible cooling setups.

  • Pre-mounted I/O shield and user-friendly features (Q-Antenna, Q-LED) simplify assembly.

✨ Customization & Extras

  • Aura Sync RGB lighting with three addressable RGB Gen 2 headers.

  • Support for Armory Crate and AI-based ASUS software utilities.

📌 Typical Use Cases

  • Gaming Builds: High VRM stability and PCIe 5.0 GPU support.

  • Content Creation: Fast storage options and DDR5 memory support.

  • High-Performance PCs: Excellent connectivity, expansion, and customization options.
